map.h File Reference

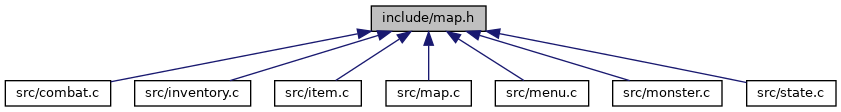

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	map
	Structure that represents a map in the game. More...

Typedefs
typedef struct state	State
typedef struct cell	Cell
typedef struct item	Item
typedef struct player	Player
typedef struct projectile	Projectile
typedef struct monster	Monster
typedef struct map	Map
	Structure that represents a map in the game. More...

Functions
Map *	initMap (int width, int height)
	Initialize a new map. More...
void	freeMap (void *p)
	Free the map structure. More...
void	drawMap (Map *map, int mode)
	Draw the map according to the mode. More...
void	generateMap (State *st)
	Generate the map based on algorithm TODO explain more. More...
void	getPlayerInitialPosition (Map *map, int *x, int *y)
	Get the player initial (3x3 empty space) More...
void	getRandomCoordinates (Map *map, int *x, int *y)
	Get random coordinates for monsters. More...
void	calculateDistances (Map *map, int x, int y)
	Calculate the distances from the player to all the cells, also updates the effect and effect_duration and color of the effected cells. Finally updates the is_visible field in the cells. More...
void	calculateVision (Map *map, Player *player)
	Calculate the vision of the player and updates the is_visible and was_visible field in the cells. More...
void	distributeItems (Map *map, Item **items, int nr_items)
	Distribute the items on the map. More...
void	pickUpItem (State *st)
	Get the item on the player position. More...
Monster *	getCloserUnhurtMonster (State *st)
	Get the closer unhurt monster to the player. More...

Typedef Documentation

Cell

typedef struct cell Cell

Item

typedef struct item Item

Map

typedef struct map Map

Structure that represents a map in the game.

A map is a 2D array of cells with a width and a height. It also contains an array of items distributed in the map.

Parameters

width	Width of the map (number of columns)
height	Height of the map (number of rows)
cells	2D array of cells
has_menu	Does the map have a menu? yes if MENU_HEIGHT > 3 * height
items	Array of items in the map
nr_items	Number of items in the map
projectiles	Array of projectiles in the map
nr_projectiles	Number of projectiles in the map

Monster

typedef struct monster Monster

Player

typedef struct player Player

Projectile

typedef struct projectile Projectile

State

typedef struct state State

Function Documentation

calculateDistances()

void calculateDistances	(	Map *	map,
		int	x,
		int	y
	)

Calculate the distances from the player to all the cells, also updates the effect and effect_duration and color of the effected cells. Finally updates the is_visible field in the cells.

The distance is calculated as the maximum between the x and y distance

Parameters

map	Map to calculate
x	Starting x coordinate
y	Starting y coordinate

calculateVision()

void calculateVision	(	Map *	map,
		Player *	player
	)

Calculate the vision of the player and updates the is_visible and was_visible field in the cells.

Uses the calculateVisionAux() function to calculate the vision for all eight directions

Based on the player vision width calculates the number adjacent lines of sight

Parameters

map	Map to calculate the vision
player	Player to calculate the vision

distributeItems()

void distributeItems	(	Map *	map,
		Item **	items,
		int	nr_items
	)

Distribute the items on the map.

Distribute the items randomly on the map, avoiding the player, monsters and other items

Parameters

map	Map to distribute the items
items	Array of items to distribute
nr_items	Number of items in the array

drawMap()

void drawMap	(	Map *	map,
		int	mode
	)

Draw the map according to the mode.

NOTE: This could be improved by only drawing the cells that have changed This could be implemented by storing bool value in a cell, per example: is_changed

Parameters

map	Map to draw
mode	normal mode, vision mode or distance mode

Returns

void

freeMap()

void freeMap

(

void *

p

)

Free the map structure.

Parameters

p	a pointer to the map to free

Returns

void

generateMap()

void generateMap

(

State *

st

)

Generate the map based on algorithm TODO explain more.

• Top, bottom, left and right walls
• Fill the rest with a 40% chance of generating walls

Saves a (int**) map twice

Parameters

st	State to generate the map

Returns

void

getCloserUnhurtMonster()

Monster* getCloserUnhurtMonster

(

State *

st

)

Get the closer unhurt monster to the player.

The closer monster is the one with the minimum distance to the player. Except if the monster is hurt or too close to the player (2 cells away). This function is used to determine which monster to ear.

Parameters

st	State to get the monster

Returns

Monster* A close monster unhurt and 3+ cells away

getPlayerInitialPosition()

void getPlayerInitialPosition	(	Map *	map,
		int *	x,
		int *	y
	)

Get the player initial (3x3 empty space)

Parameters

map	Map to get the player initial position
x	returns the x coordinate
y	returns the y coordinate

Returns

void

getRandomCoordinates()

void getRandomCoordinates	(	Map *	map,
		int *	x,
		int *	y
	)

Get random coordinates for monsters.

Parameters

map	Map to get the random coordinates
x	returns the x coordinate
y	returns the y coordinate

initMap()

Map* initMap	(	int	width,
		int	height
	)

Initialize a new map.

Allocates memory for the map and its cells, items and projectiles arrays.

Parameters

width	Map width
height	Map height

Returns

Map pointer to the new map

pickUpItem()

void pickUpItem

(

State *

st

)

Get the item on the player position.

Removes the item from the map, adds it to the player inventory and equips it if there's no equipped item.

Also sends a message to the menu.

Parameters

st	The game state
